335i 7" Intercooler FMIC

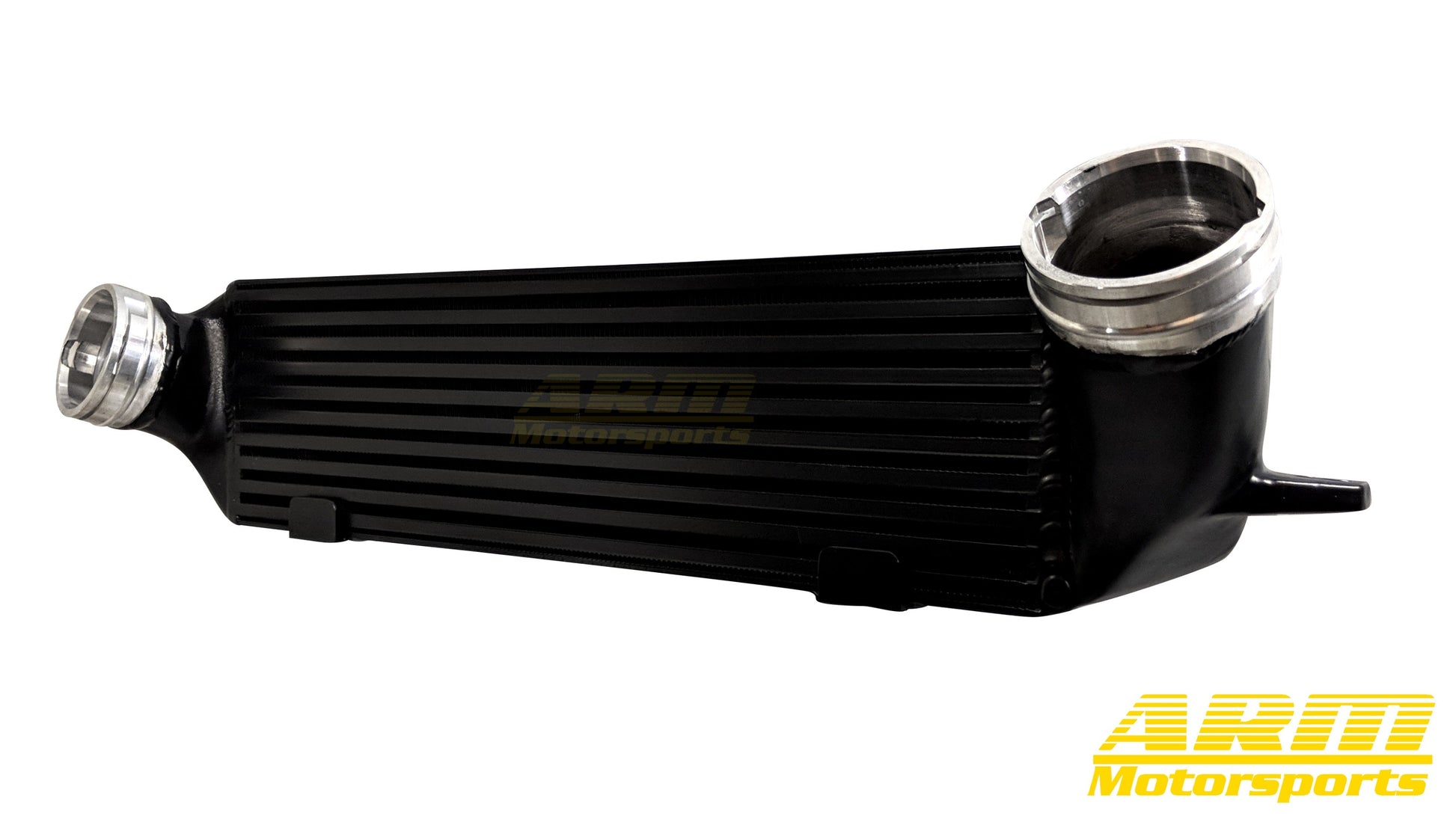

Name: 335i 7" Intercooler FMIC
Brand: armmotorsports
SKU: 335FMIC7
Price: 397.0 USD
Availability: InStock

$397.00

Sale Sold out

Product variants

Quantity

30 Day Money-Back Guarantee | IN STOCK

HIGHLIGHTS

• Gain up to 35whp/38wtq
• I89% Larger Than OEM
• 1hr Installation
• Ultra-Dense Fin Packs

PROFILE

At 805 cubic inches the ARM Motorsports 7” FMIC provides a significant increase in cooling efficiency over the 5" FMIC and the perfect intercooler upgrade for the N54 and N55 powered E90 335i maxing out the stock turbos or running a turbo upgrade. With almost a 30% increase in size over our 5" intercooler upgrade, our 7" FMIC a respectable step up in overall volume for handling higher boost applications where the IAT's can rise quickly.

CONSTRUCTION

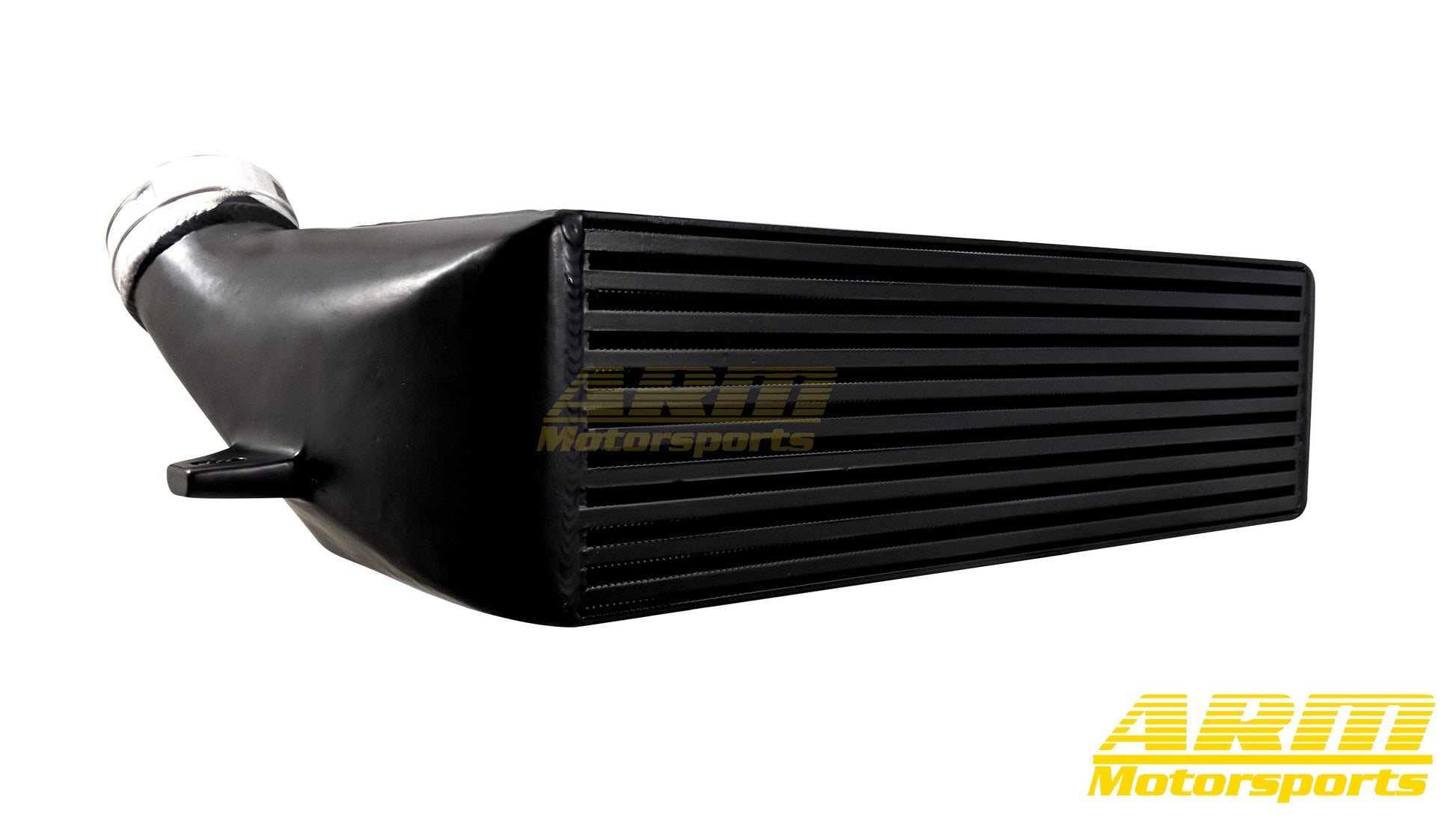

At the heart of the ARM 7” FMIC is the intercooler core with our all new ULTRA-Dense fin packs. With 18 fins per inch, the ARM 7” FMIC is at the top of its class for core density and cooling performance. Not surprisingly, it can cool the charged air of your 335i as efficiently as intercoolers larger than it, without the pressure loss associated with those larger intercooler upgrades.

335i Intercooler 7in FMIC

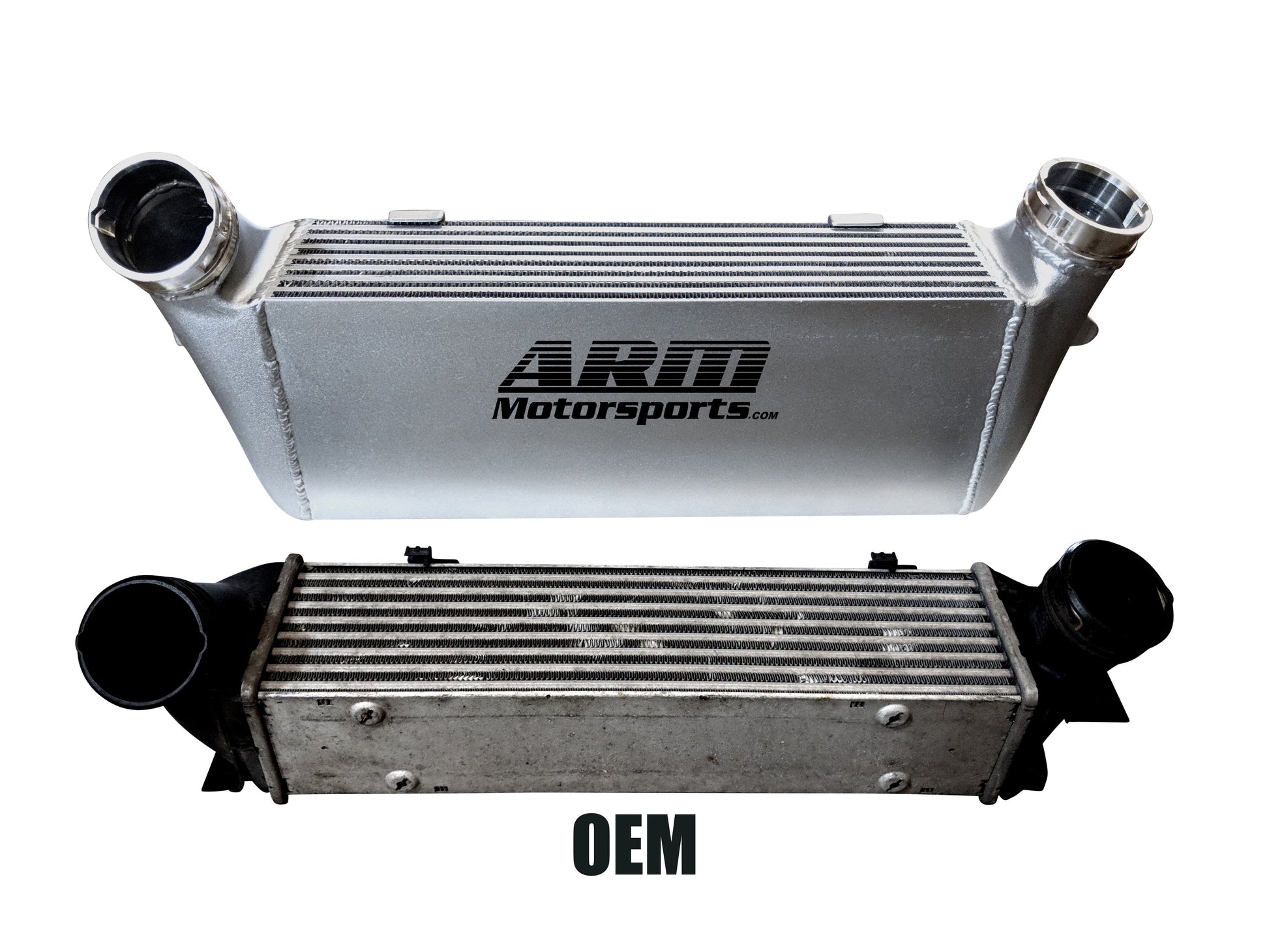

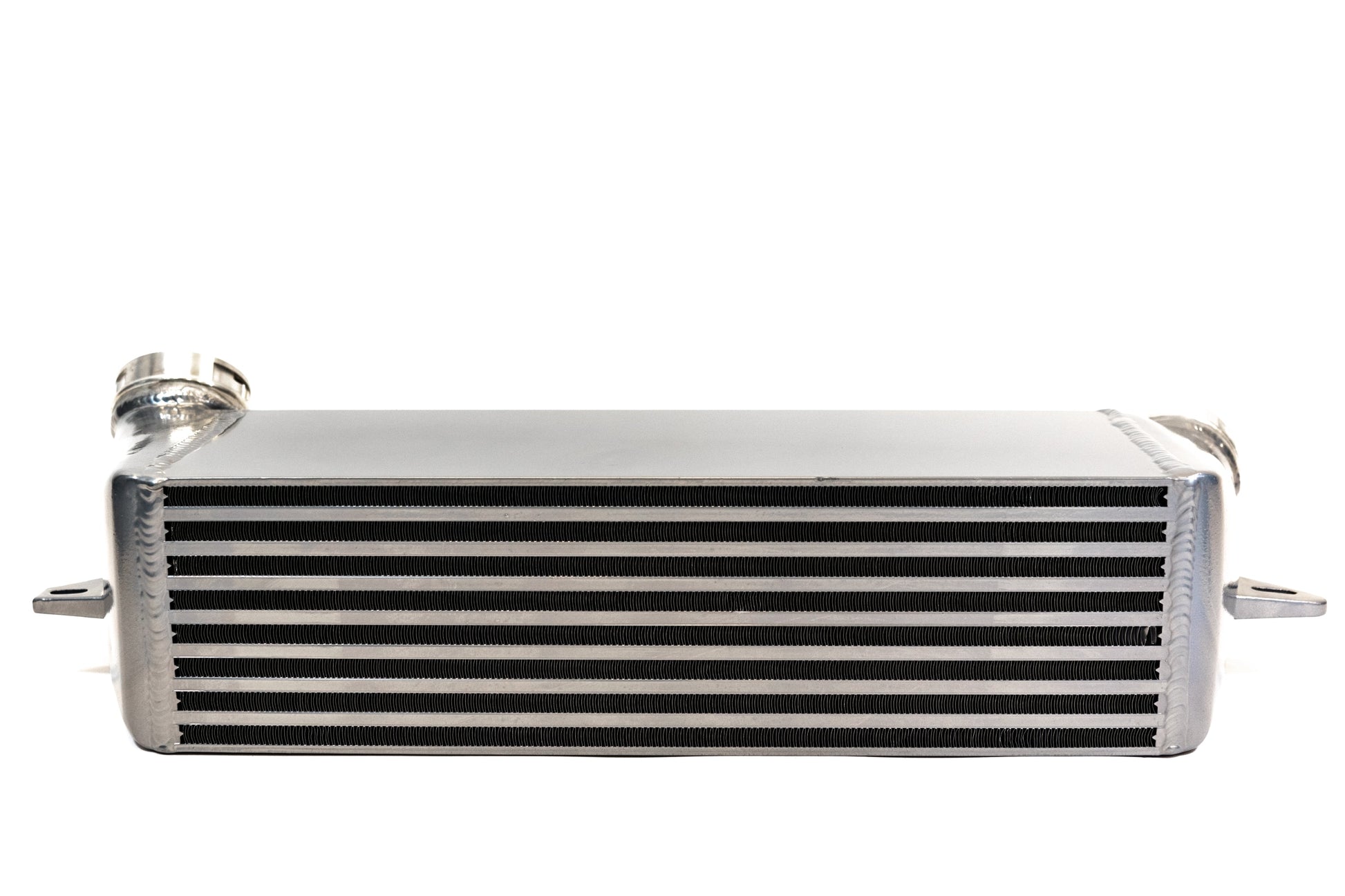

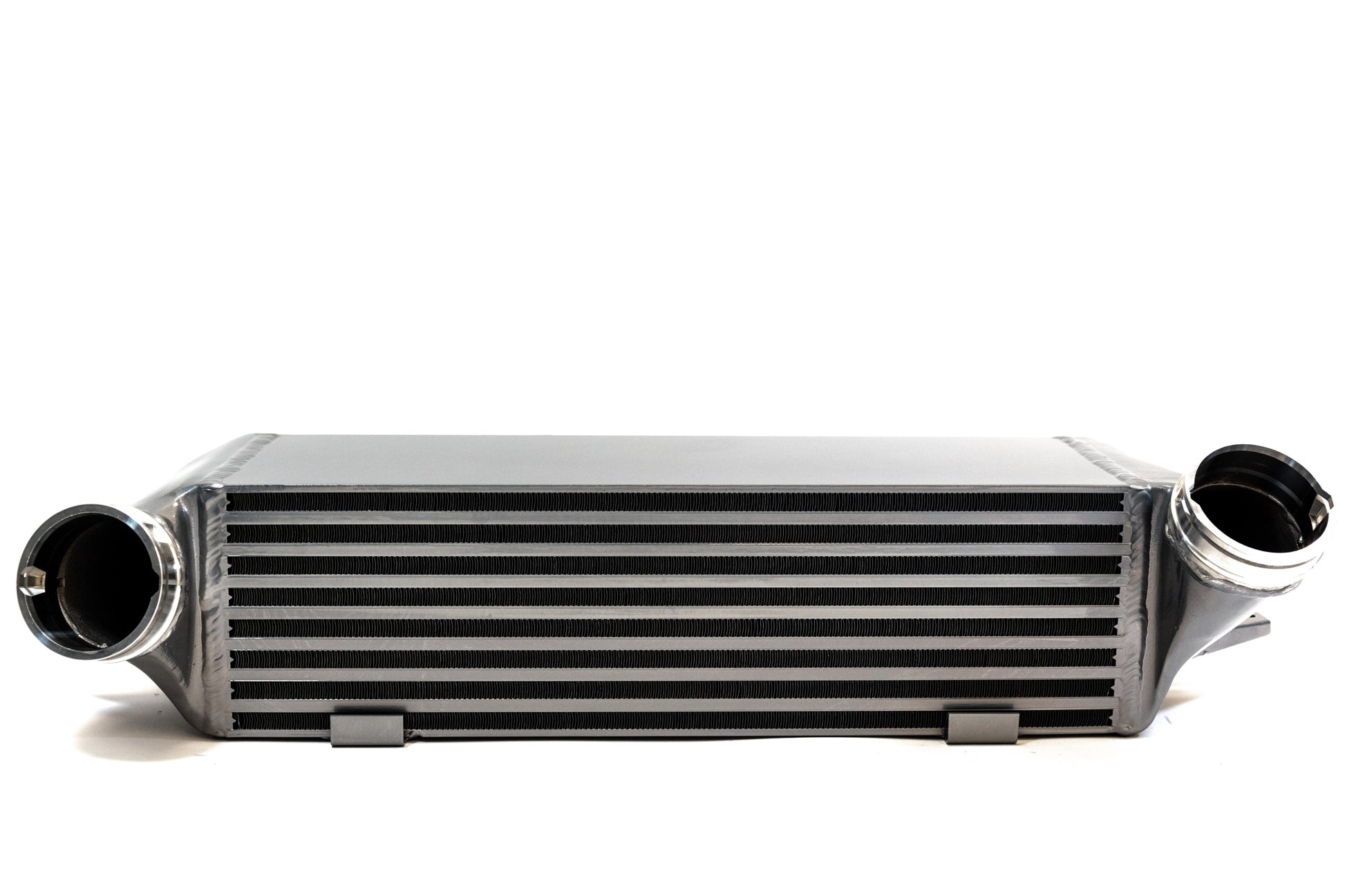

The ARM 7” FMIC measures 20 x 7 x 5.75 inches for a total of 805 cubic inches, almost DOUBLE the size of the OEM 335i intercooler and 180 cu in larger than our 5” FMIC. Combined with our Ultra-Dense fin packs, not only are you getting a substantially larger intercooler, but also one that utilizes its size efficiently for maximum cooling performance.

COOLING INTAKE AIR TEMPERATURES

While testing the 7" FMIC for it's ability to cool the charged air, we found that IAT's increased only three degrees during a 3rd gear datalog. Considering our baseline test with the OEM intercooler resulted in a performance-robbing IAT increase of sixty degrees, the ARM 7" FMIC has 95% better cooling performance than the OEM 335i intercooler.

FIRST OF ITS KIND

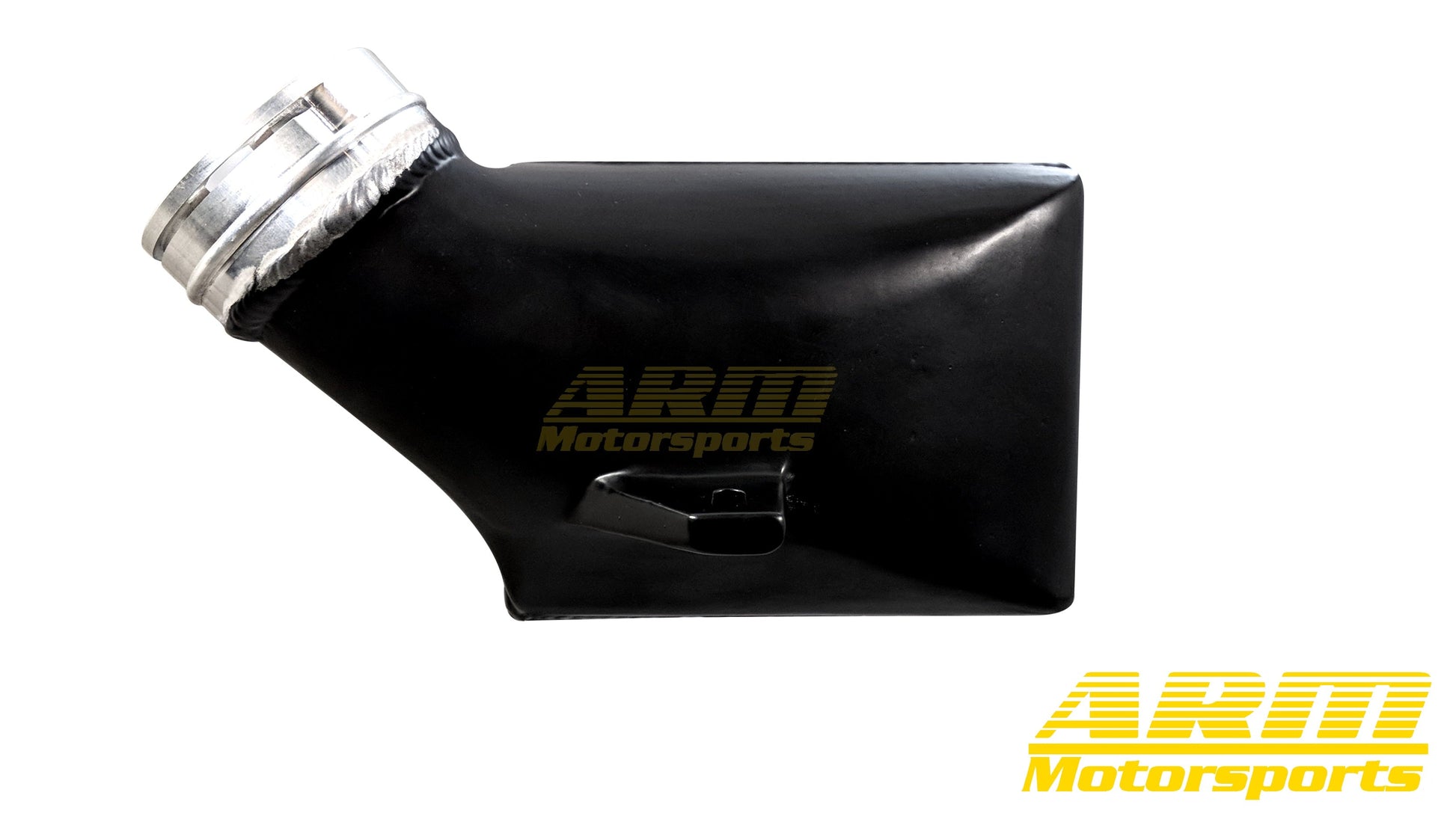

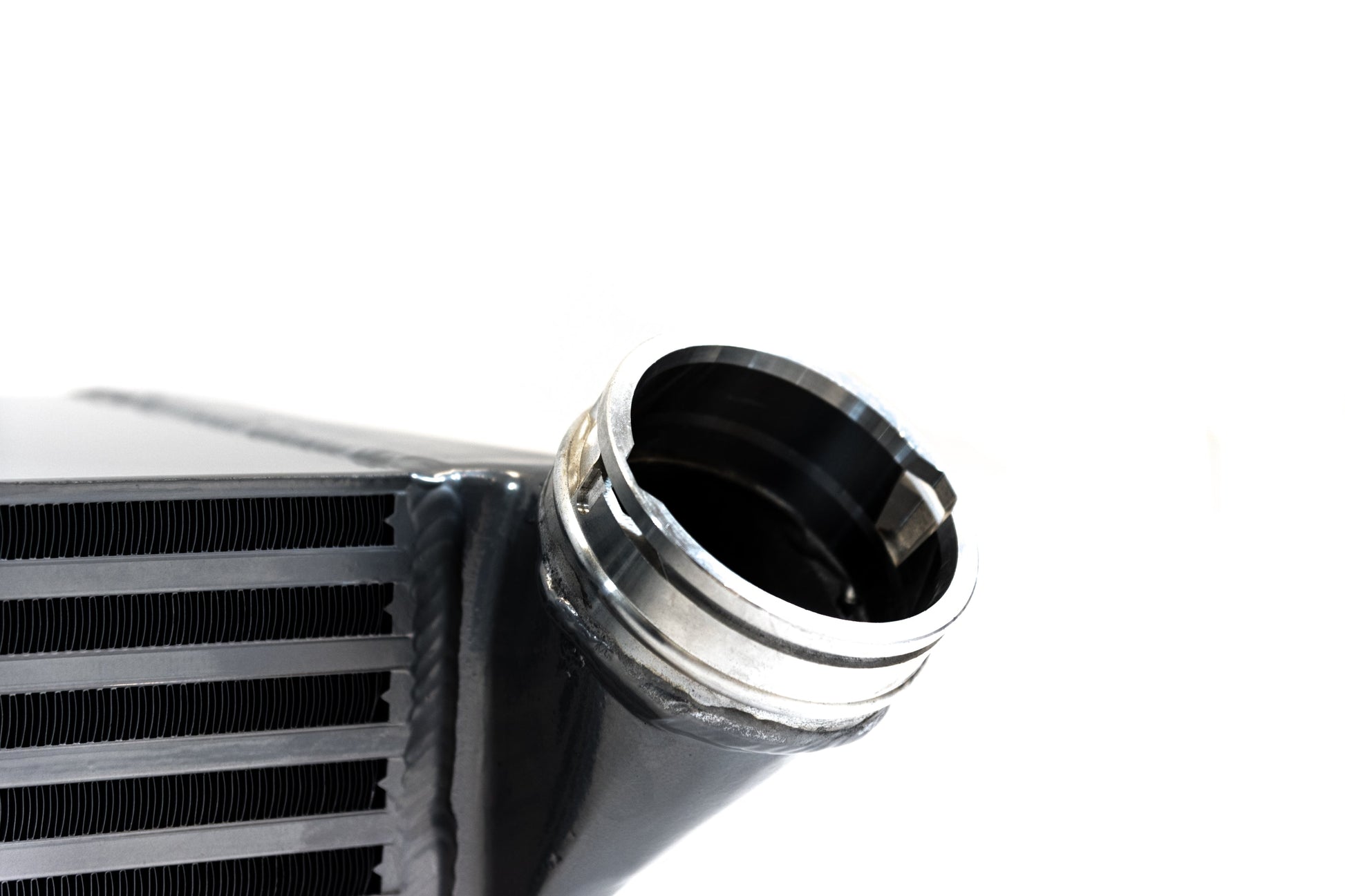

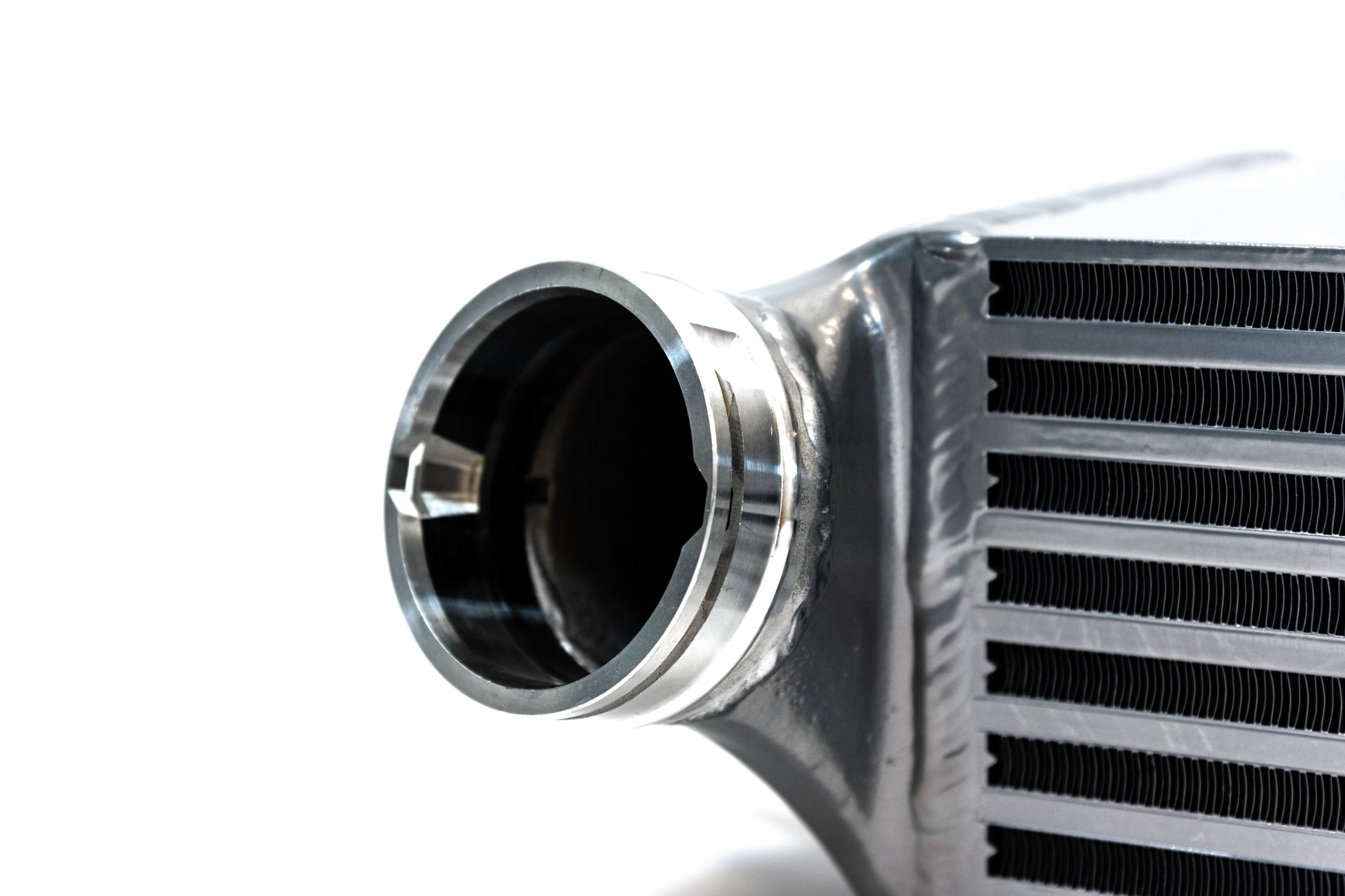

The ARM 7” FMIC is the first ever intercooler upgrade for the E90 335i that has been engineered with CAD designed CNC aluminum connectors for you to utilize either the OEM intercooler hoses or the ARM FMIC Hose Upgrade. Opting to utilize the OEM connectors will make for a faster and fully reversible install. While upgrading your 335i to the massive ARM 3 in. intercooler hoses, you will be giving your 335i maximum airflow by removing any restriction the OEM connections may have on the charged air.

DYNO PROVEN

When testing the 7" FMIC on a Stage 2+ N54 335i we found it made an average of 10whp/10wtq over our 5" FMIC upgrade and 35whp/38wtq over the OEM intercooler!

FITMENT: The OEM 7” FMIC does NOT require removal of the front bumper, but will require some trimming of the plastic behind the bumper. For more on finding the right FMIC upgrade for your 335i, check out our quick reference guide HERE.

CUSTOMER CARS

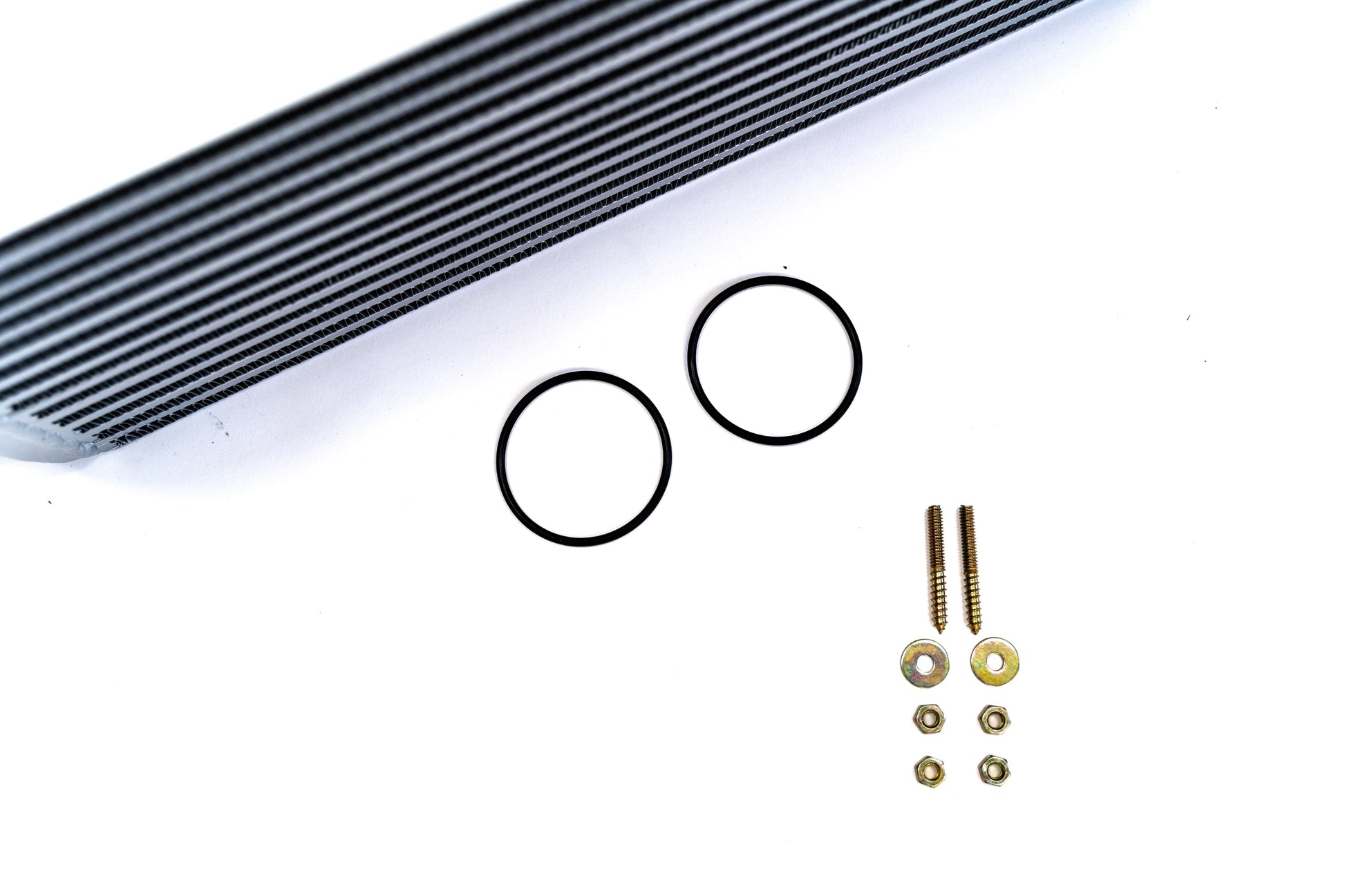

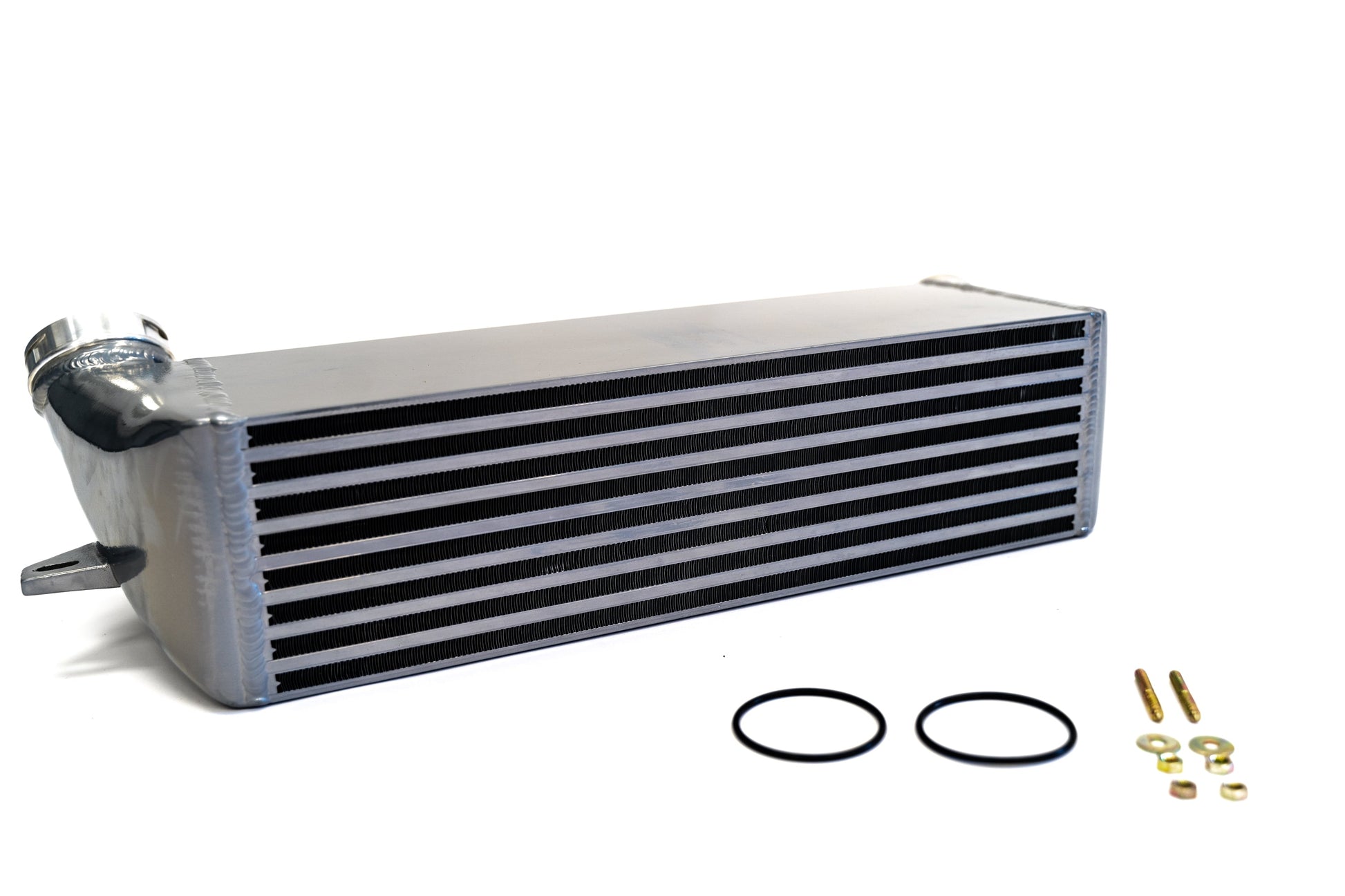

IN THE BOX

• ARM 7" FMIC
• Mounting Hardware

FITMENT GUIDE

Make	Chassis	Model	Engine
BMW	E82	135i	N54 3.0L
BMW	E82	135i	N55 3.0L
BMW	E90	335i	N54 3.0L
BMW	E90	335i	N55 3.0L
BMW	E90	335xi	N54 3.0L
BMW	E90	335xi	N55 3.0L
BMW	E92	335i	N54 3.0L
BMW	E92	335i	N55 3.0L
BMW	E92	335is	N54 3.0L
BMW	E92	335xi	N54 3.0L
BMW	E92	335xi	N55 3.0L
BMW	E93	335i	N54 3.0L
BMW	E93	335i	N55 3.0L
BMW	E93	335is	N54 3.0L

ARM MOTORSPORTS LIFETIME WARRANTY

Every ARM Motorsports product is backed by a lifetime warranty which is automatically issued at the time of purchase. Your warranty protects you against any defects in craftsmanship or fitment. The warranty entitles you to a replacement unit.
